Endoscopy

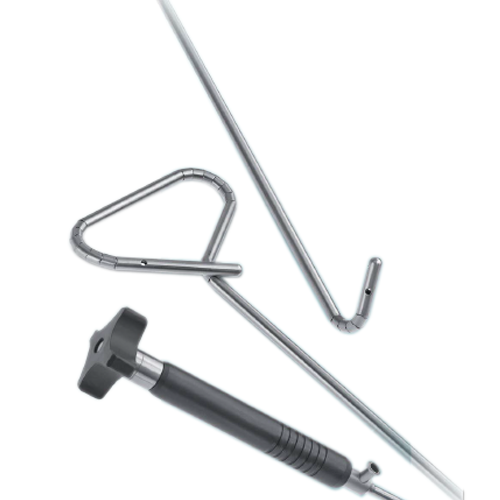

ARTICULATING RETRACTORS AND BAND-PASSER

RZ designed a full set of the most common Articulating Laparoscopic Retractors used in the peritoneal space to retract organs and structures.

•The slim 5mm shaft makes it easy to use the retractors with any 5.0 or 5.5mm trocar sleeve.
•For a thorough cleaning all RZ Laparoscopic Retractors feature a LuerLock flushing port.
•Small segments are used to ensure only minimal space is needed to form the retractor shape inside the abdomen.
•The Angled version of the Articulating Laparoscopic Retractors produce extra view by increased retracting possibilities.

RZ offers all models in 330mm as well as 450mm working length for Bariatric surgery.

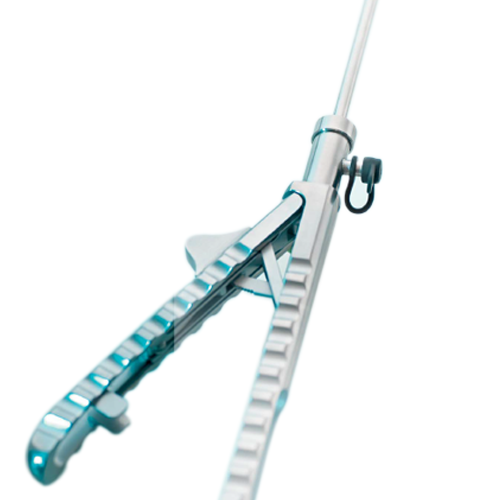

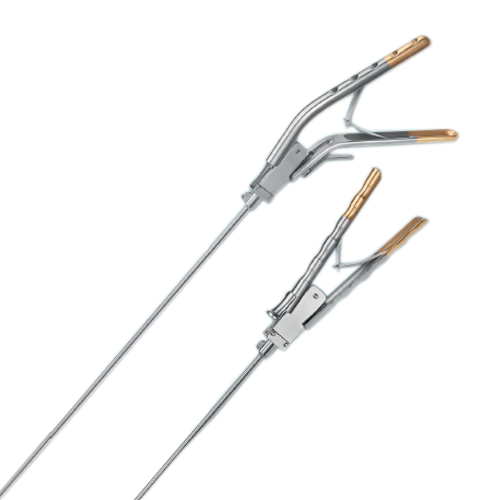

TC NEEDLE HOLDER WITH AXIAL RATCHET HANDLE

Lightweight and reliable Needle Holders with two different easy rotatable handles for a maximum of flexibility and comfort. These Needle Holders are designed for a precise handling to grasp and hold needles more securely. The flush port ensures an easy cleaning.

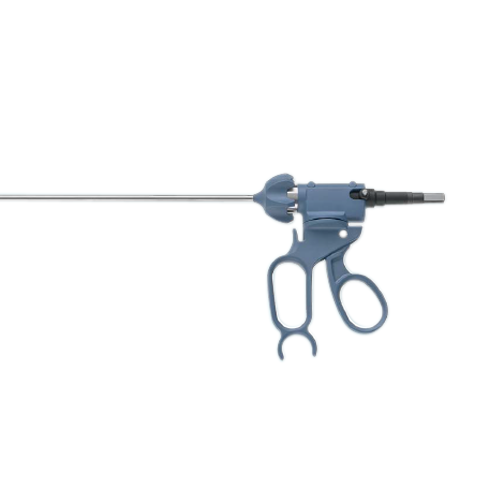

BiPOspin 720° rotatable Forceps - turn the grip instead of the wrist
Electrodes
Bipolar Cables

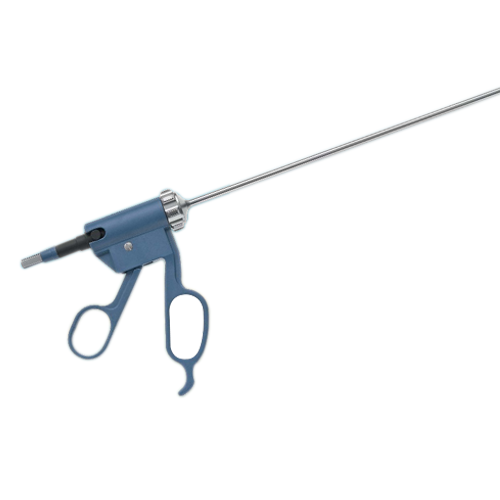

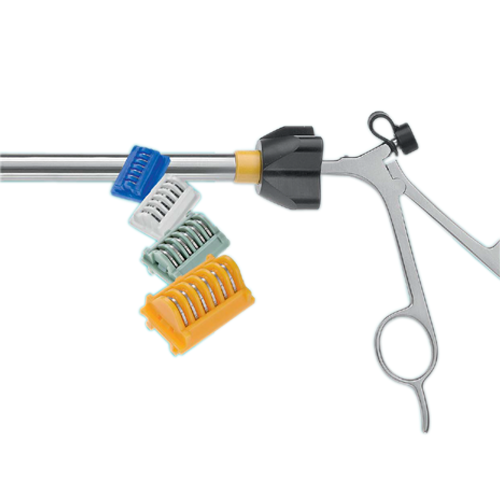

ADVANCED ENDOSCOPIC RZ CLIP APPLYING FORCEPSfor laparoscopic and XXL Bariatric laparoscopic procedures

Features of the RZ Clip Applier:

•Coloured ring indicates clip size to be used.
• Exact clip positioning in the centre of jaws, for equal pressure applied on the clips.
• 1-hand clip loading by use of narrow jaws.
• Thorough cleaning of the inner shaft via a rinsing adaptor in the rear of the handle.
• Light weight design for less strain during surgery.

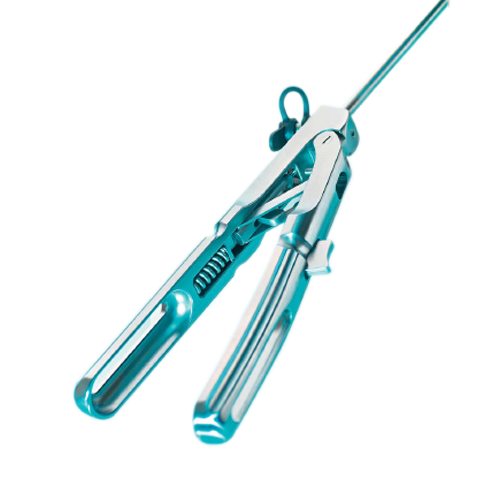

DICK II ENDOSCOPIC NEEDLE HOLDERS- TC or DIAMOND DUSTED

The new and lightweight version of the well-established DICK TC Needle Holders features a shorter and more lightweight handle design, specially designed forsurgeons looking for a lighter alternative.The same wide range of diameters, lengths and jaw designs is available also for the DICK Needle Holder range.

MINI LAPAROSCOPIC INSTRUMENTS

A safe procedure at patient's beauty benefit. State-of-the-art instruments are used just with smaller diameter. Minimal incisions leave almost invisible scars, therefore less trauma and faster healing. All RZ 3.5mm inserts can be used with all RZ laparoscopic handles.

TROCARS AND TROCAR SLEEVES
SUCTION AND IRRIGATION
LAPAROSCOPY INSTRUMENTS
MONOPOLAR ELECTRODES
MICRO BIPOLAR SYSTEM

DICK ENDOSCOPIC NEEDLE HOLDERS - TC or DIAMOND DUSTED

Appreciated features of the axial handle like automatic mechanism andsmoothly releasing interlock in combination with either TC or DD jaw -a new winning team for endoscopic suturing.

TOBIAS AND TOBIAS II FASCIA SUTURING INSTRUMENTS

with self closing spring mechanism are unique instruments to close trocar incisions under vision.

VASCULAR CLAMPS for perfect temporary atraumatic occlusion

VASCULAR APPLIERS AND CLIPS for perfect temporary atraumatic occlusion

DETACHABLE BIPOLAR FORCEPS for safe and easy surgery

MONOPOLAR ELECTRODES with ceramic tip for safe coagulation

LAPAROSCOPIC INSTRUMENTS for suturing, cutting, dissection and grasping

ENDOSCOPIC NEEDLE HOLDERS for a reliable grip

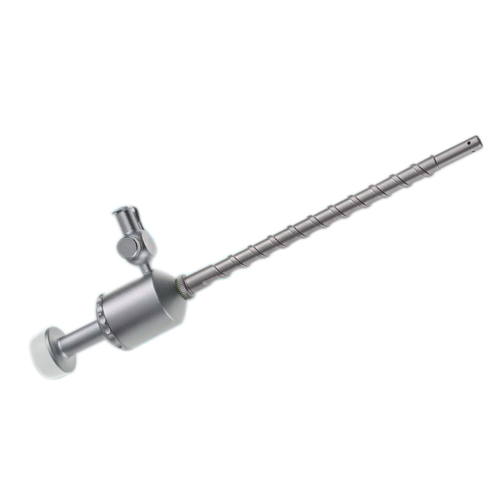

Flexible Trocars fur use of curved instruments

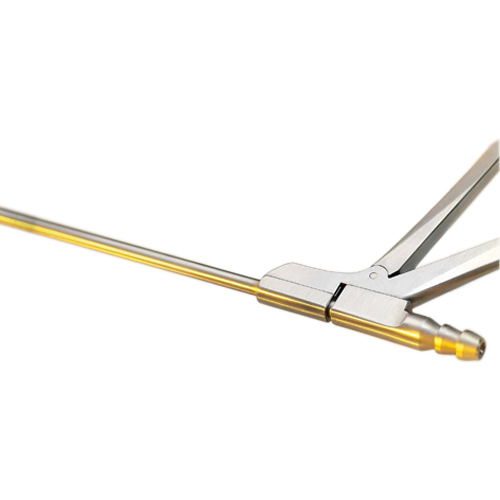

ENT FESS SUCTION PUNCHES AND FORCEPS

For many years RZ Medizintechnik GmbH offers awide range of special ENT instruments.
Today RZ Medizintechnik GmbH presents the latestproducts in ENT surgery - FESS Suction Punches andSuction Forceps.

RZ FESS Suction Punches and Suction Forceps featurean integrated suction channel with 3 major benefits forthe surgeons:

1. Tissue will be retracted inside the jaws for safe and precise cutting.
2. Tissue parts will be automatically aspirated for continuous working without instrument removal.
3. Blood and other fluids can be easily aspirated for a clear view during surgery.

McINTOSH AND MILLER FIBREOPTIC LARYNGOSCOPE SETS

Hook-on Ball Locking System for easy and secure blades on handle change

1. Micro-Working ends
- A variety of styles available for different surgical approaches
- Delicate working ends for precise performance

2. Memory Nitinol shaft
- Shapes to coincide with anatomical needs
- reverts to original shape after sterilization

3. Irrigating Connection
- For easy and effi cient cleaning of internal components

4. 360° rotatable working ends
- Hand controlled wheel ensures exact positioning of the working end
- rotation combined with malleable shaft offers unparalleled instrument positioning

Colour Coding
- Simple identifi cation of the working end by colour coated rotary knobs

ergonomic Handle
- Low weight, ergonomic shape of the ring handle for a comfortable working

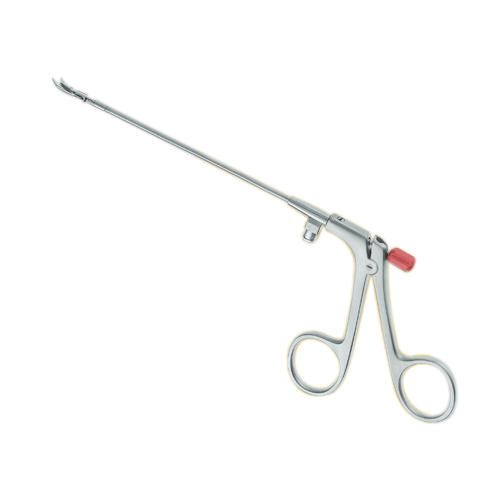

MEMORY MICRO INSTRUMENTS

SCISSORS
BLAKESLEY FORCEPS
GRASPING FORCEPS
FORCEPS
NEEDLE HOLDER
SPOONS

Universal Optical Bronchoscope Forceps

For use with 5.5mm Diameter, 50cm long Bronchoscope Telescopes 100-655-000 and 100-655-030

Suitable for Universal Bronchoscope tubes from size 7.5 – 8.5

351-720-000 (Mini Hysteroscope, 2.0 mm Ø, 0° direction of
view)351-720-030 (Mini Hysteroscope, 2.0 mm Ø, 30° direction of
view)351-829-100 (Hysteroscope, 2.9mm Ø, 0° direction of view)351-829-130
(Hysteroscope, 2.9mm Ø, 30° direction of view)

The 50.000 pixel fibre bundle eliminates brokenrod-lenses which saves repair charges as well asrepair delays. No worries anymore to use Miniand Slim endoscopes for atraumatic procedures inHysteroscopy.

New RZ Semi-Flex Systen
Original RZ Rod Lens System
